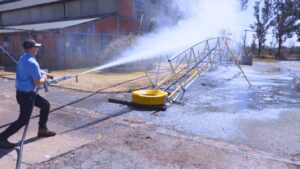

Waterjet
With Safe Shutdown Valve
With over 25 years of proven results, our waterjet enables you to enjoy a minimum of 25% increase in Production, up to 50% reduction in water use, and 100% sweepings. All our waterjets are designed and manufactured on-site.
Ideal for the following areas or purposes
Stope Cleaning
Sweeping
Face Preparation
Features
Reduction In
Water Consumption
205 L / min using the Waterjet versus 318 L / min using a 1” Hose
Increase In
Recovery Grades
This is a brief summary explaining the above-mentioned
Unrivaled
Belt Cleaning Solutions
Cleaning can be done whilst belt is in operation
- Safer Mining
All cleaning achieved without entering a red zone
- Faster Face Cleaning
It takes on average 3½ hours to clear a typical 30m face
- Sweepings Standard
Sweepings are 100% up to standard
- On-Site Service and Maintenance

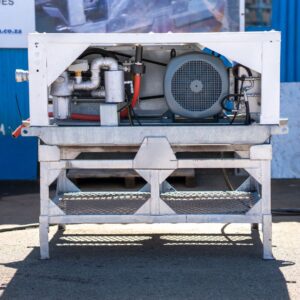

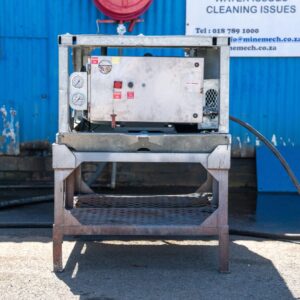

Specifications
Capacity
205 L / min @ 823 rpm±
Operating Pressure
6 Mpa
Pump
6 Cylinder positive displacement plunger pump
Drive Motor
37 kw, 3 pole, 50hz, lp55, 3-phase, cast iron or fabricated B3 foot mounted motor
Dimensions
Length: 1426mm
Width: 926mm
Height: 630mm
Width: 926mm
Height: 630mm
Weight
700kg

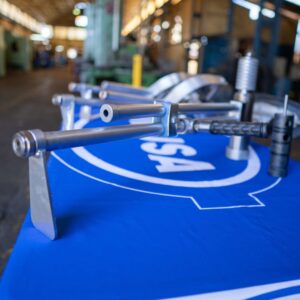

Jetting Gun
Dry Shut Off Throttle Gun
Gun Reaction Force
In Jetting Mode: 421 newtons (43kg) effective up to 12m from nozzle
In Sweeping Mode: 147 newtons (15kg)
