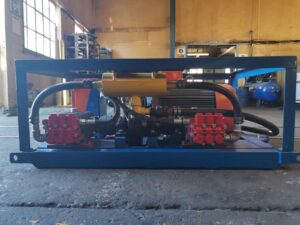

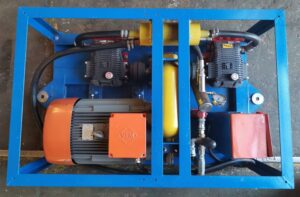

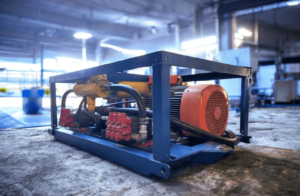

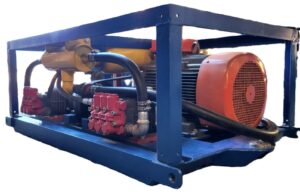

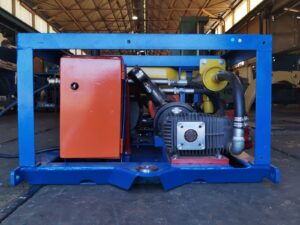

Mini Hydro Power Pack
On average 78% improvement on drilling time
Experience efficient and reliable drilling with our Mini Hydro Power Pack, designed to minimize water usage compared to conventional pneumatic methods. With a compact, skid-mounted design and supported by RDO back-up and Umusa personnel for maintenance, it’s built for performance and convenience.
Comparison between two drilling methods
Hydro Power
1 X 1.2M Hole
±1 minute, 6 seconds
Pneumatic
1 X 1.2M Hole
±5 minutes, 35 seconds
Features
Quick replacement of pump
Within 20 minutes using auto-dock system
Operate Up to
80m Away from the Hydro Power Pack
One rock drill per pack
Should there be a failure, the rest will continue
- Less Water Dumped
In comparison to Conventional Pneumatic Drilling
- Compact & Mobile
Our units are skid mounted
- RDO Back-up Support
Provided by our team
Specifications
Motor
25 Kw – 4 Pole Foot Mounted
Volume
2 Pumps @ 35L / min
Total 70L / min
Total 70L / min
Max Pressure
19 Mpa
Working Pressure
16 Mpa
Pump Speed
1465 RPM
Oil
AE75W90
Dimensions and Weight
Height: 510mm
Width: 805mm
Length: 1240mm
Weight: 480kg
Power Supply
525 VAC
Load
38 Amp
